Revit Casework v1.1 Expansion Pack - Bathroom Families
Apr 27, 2026
We have just released version 1.1 of our popular Revit casework families. It is an expansion pack featuring brand-new bathroom families.
Click here to download the collection

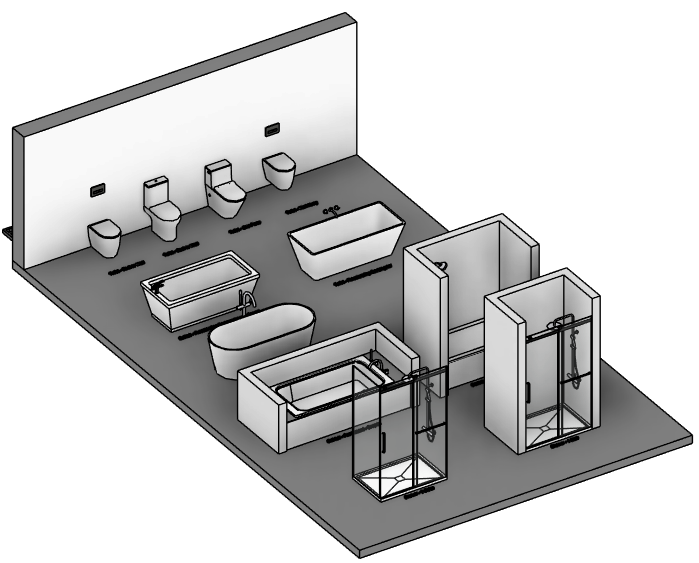

1- New Bathroom Families
You will find a whole collection of bathtubs, showers, and toilets, along with faucets &plumbing fixtures. These families are made to be simple and efficient for your bathroom projects. Most of these families are level-hosted (not wall-hosted or face-based), so they can be easily integrated into model groups.

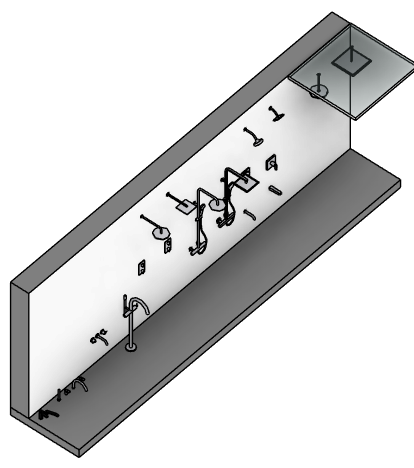

2- Extra Faucet/Shower Fixtures
You will also find several faucet and shower plumbing fixture families. If you want to swap the fixtures in the bathtub or shower families, load the fixture as an extra nested family. Use the <Family Type> parameter to swap to a different fixture.
If you want to schedule these faucet/shower fixtures, you can activate the Shared option in the families.

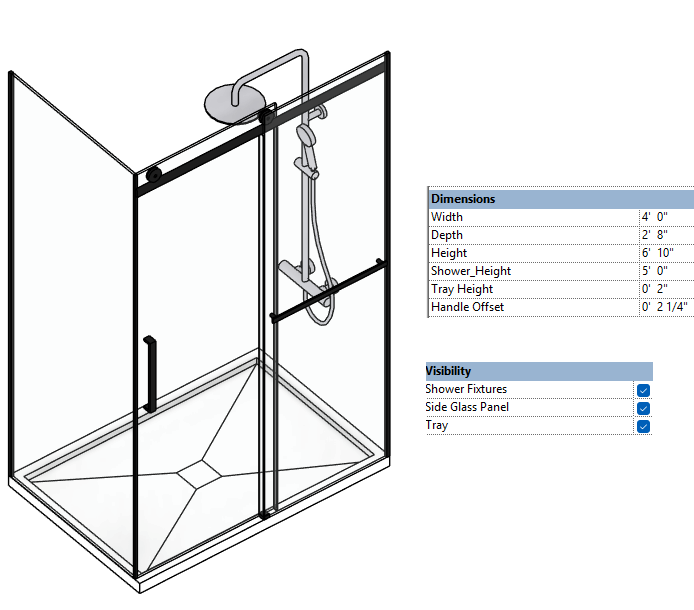

3- Shower Family
The shower family has a few options. You can control the visibility of the shower fixture, the base tray, and the side glass. Therefore, you can use the same family for 1-side or 2-sides glass.

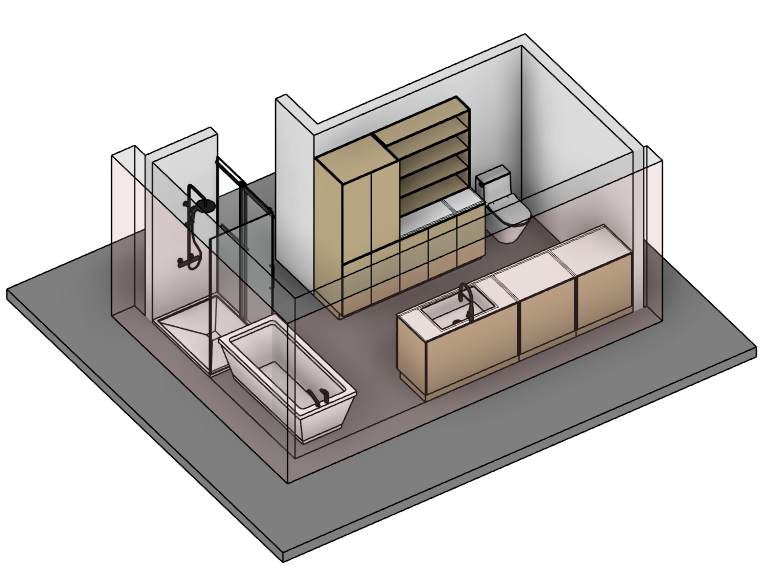

4- Forest Zen Bathroom
We created a sample bathroom with casework and some of these bathroom families. We gave it the very fancy name of "Forest Zen".
This is for you to see how these families can be used alongside the casework components to model a complete bathroom.

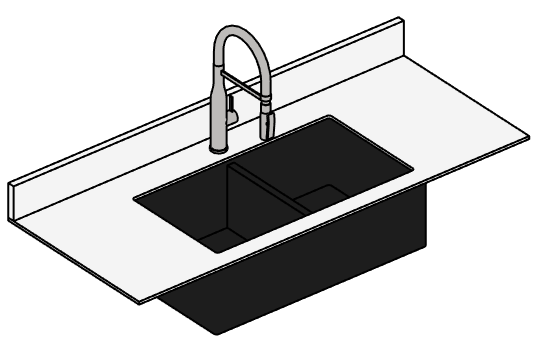

5- Improved Countertops
The countertops families have been improved:
- Moved the reference lines of the sink to the center instead of the left side.
- Added an optional backsplash option.
- Fixed a bug with one of the sink dimensions.

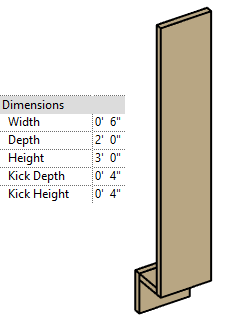

6- Filler Families
Added a filler family, including a version with type parameters and another with instance parameters.
The collection is part of the membership. Click below to download.
